OT-PLC602-T
Ethernet Extender
◆ IP over 2-wire up to 1,000m
◆ Full duplex 100Mbps
◆ High EMC level
Overview
Dimension
Diagram
Parameter
Download
Overview

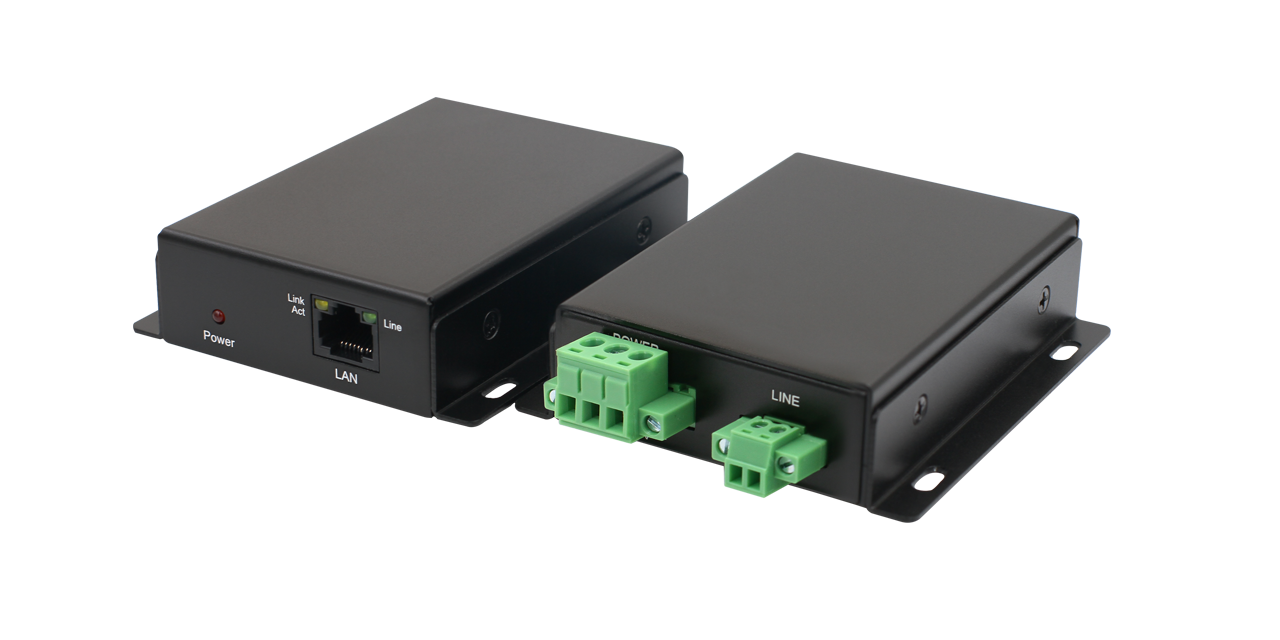

OT-PLC602-T is a high-speed Ethernet Extender. It can transmit Ethernet signal over single pair 2-wire cable such as coax cable, Cat5 cable, telephone cable, power line and so on.

This device contains one Receiver unit and one Transmitter unit, and can be connected to the existing cabling infrastructure for IoT devices including IP phones, cameras, access control, speakers and etc.

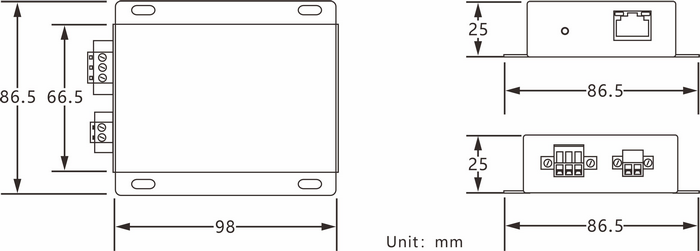

Dimension


Diagram

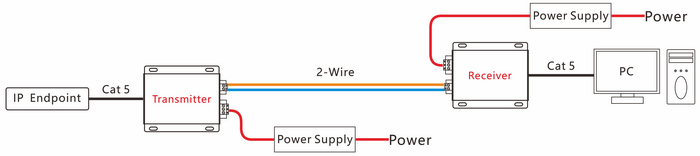

Point to Point

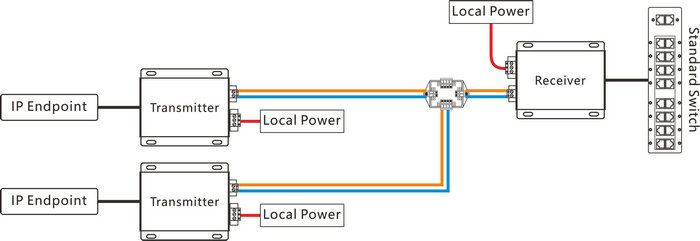

Point to Multi-point: Two Endpoint (Star)

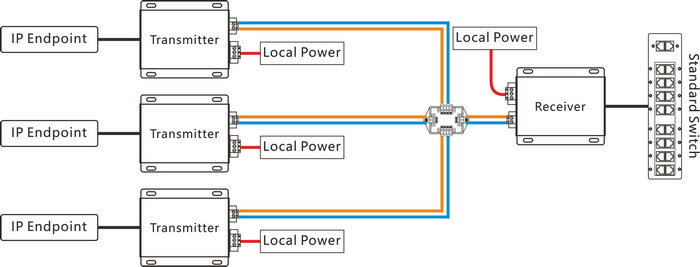

Point to Multi-point: Three Endpoint (Star)

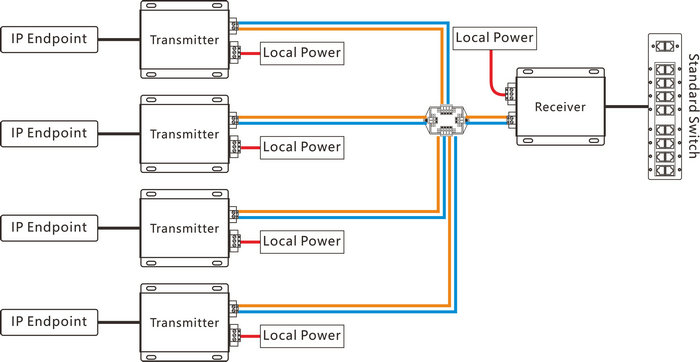

Point to Multi-point: Four Endpoint (Star)



Parameter

Category

Description

Power

Available Voltage Range

12~24VDC

Power Consumption

≤3W/PC

Transmission/Rate

Standard Compliance

IEEE1901, IEEE802.3

Up Down Agreement

CSMA/CA

Bandwidth

Full duplex 100Mbps

Physical Characteristic

Dimensions (L×W×H)

98×86.5×25mm

Material

Aluminum

Net Weight

145g/PC

Operating Environment

Working Temperature

-20℃~60℃

Working Humidity

<95% (Non-condensation)
