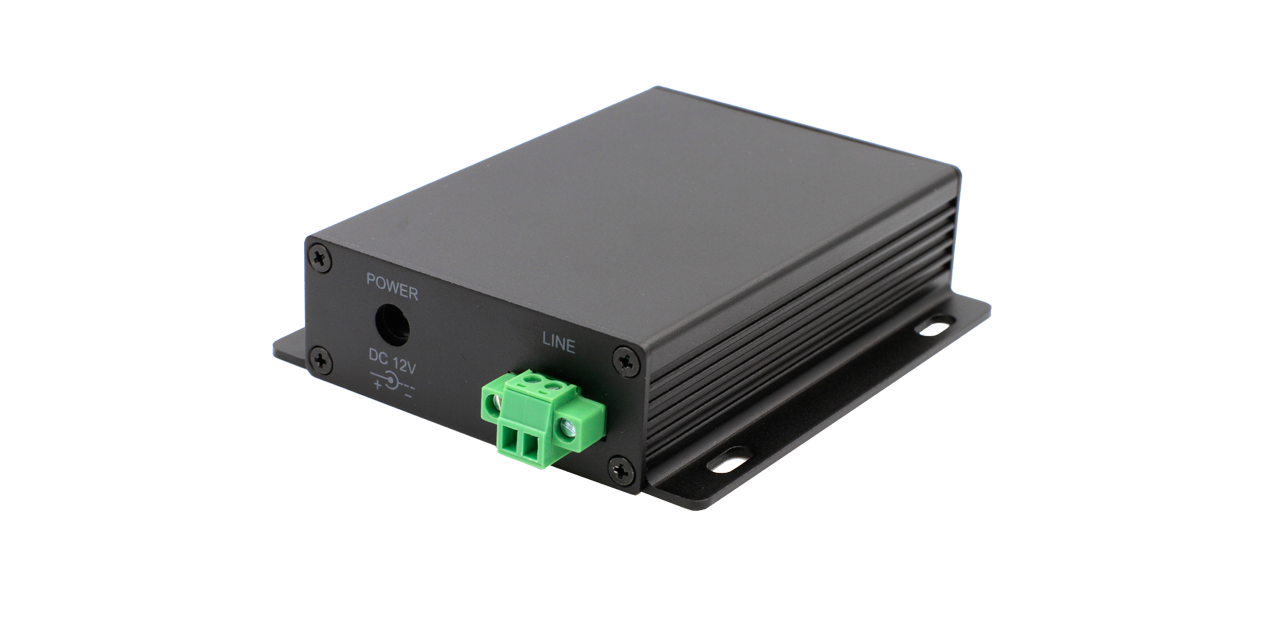

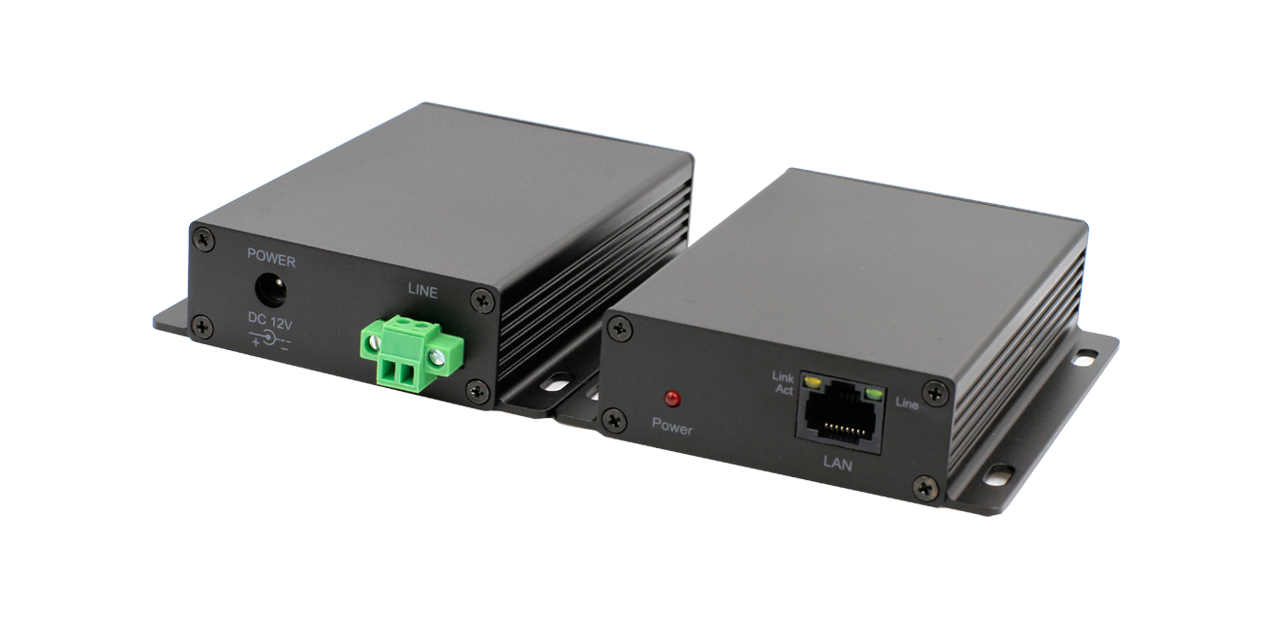

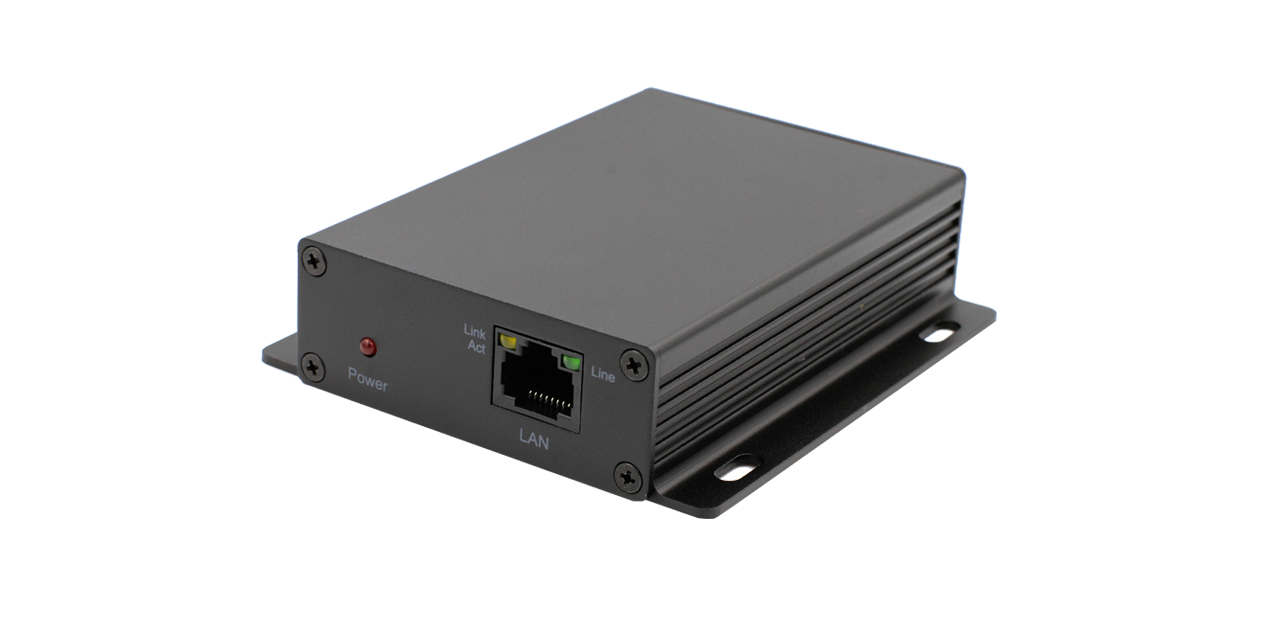

OT-PLC302-N is an innovative device that carries standard Ethernet signals over existing two-wire, twisted pair, telephone, or power lines. Designed for minimal setup and maximum efficiency, it's a turnkey solution for anyone seeking high-speed, stable communication in large or complex network environments.
Key Features & Benefits
1. Wide Reach & High Throughput
● Transmissions stretch up to 600 meters.
● Support full duplex 100Mpbs fast Ethernet.
2. Flexible Connection Modes
● Supports both point-to-point and multi-point (star or daisy-chain) setups.
● Streamlined cabling and easy scalability translate to less environmental impact and lower installation costs.
3. True Plug-and-Play Operation
● Effortless deployment—simply connect and let the unit operate in transparent transmission mode.
● No extra debugging or specialized knowledge needed to get your system online.
4. Stable & Interference-Resistant
● Utilizes OFDM carrier modulation to combat signal noise and maintain reliable data flow.
● Adheres to IEEE1901 and IEEE802.3 standards, ensuring compatibility across diverse network hardware.
5. Versatile Power Options
● Accepts a wide input range of 12–24 VDC, making it easy to draw power from local sources.
● Low power consumption helps reduce operating expenses and simplifies power sharing with other devices.
6. User-Friendly Design
● Standard desktop or wall mounting for versatile installations.
● Includes Phoenix terminals and RJ45 ports for hassle-free connections in professional or industrial settings.
● Security and Surveillance: Perfect for deploying IP cameras or access control systems in large complexes where legacy wiring is abundant.
● Video Intercom Integration: Efficiently send data and power over existing lines, streamlining residential or commercial intercom solutions.
● Branch and Remote Office Networking: Cost-effective for connecting remote terminals, ATMs, or small offices to a central hub.
● Industrial Automation: Extend network control to production lines, warehouses, or other large-scale operations without performance loss.

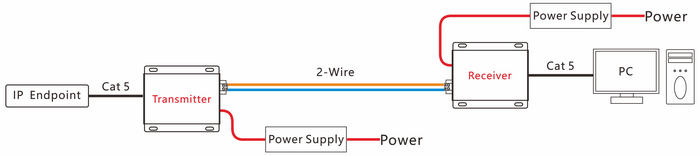

Point to Point

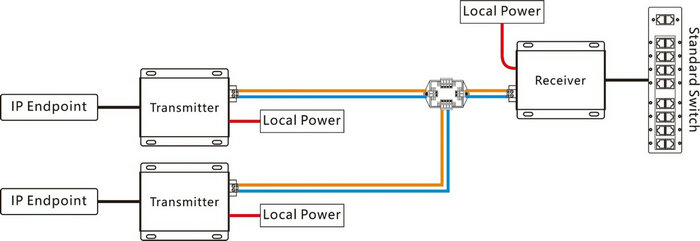

Point to Multi-point: Two Endpoint (Star)

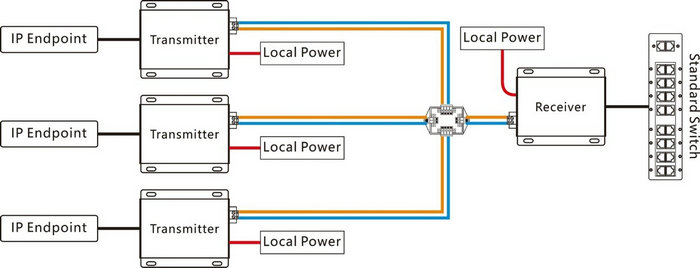

Point to Multi-point: Three Endpoint (Star)

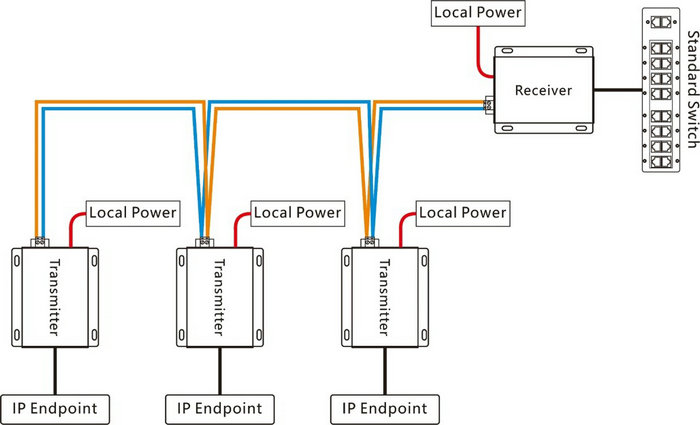

Point to Multi-point: Three Endpoint (Daisy Chain)

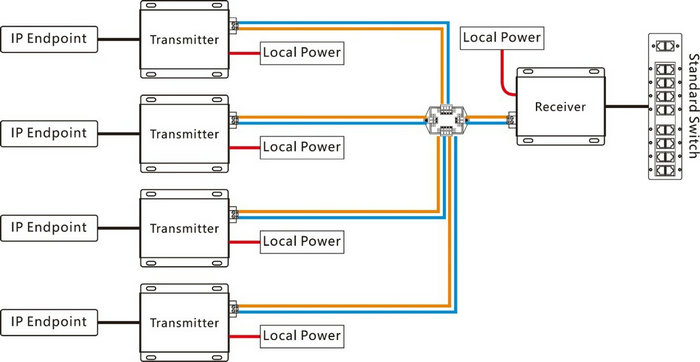

Point to Multi-point: Four Endpoint (Star)
Category | Description | |
Power | Available Voltage Range | 12～24VDC |
Power Consumption | ≤2W/PC | |
Transmission/Rate | Standard Compliance | IEEE1901, IEEE802.3 |
Up Down Agreement | CSMA/CA | |
Bandwidth | Full duplex 100Mbps | |

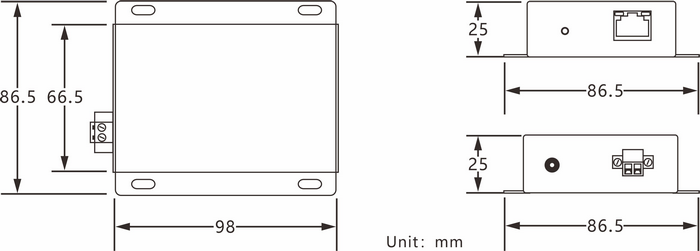

Physical Characteristic | Dimensions (L×W×H) | 98×86.5×25mm |
Material | Aluminum | |
Net Weight | 160g/PC | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
