OT-PLC601/PDU is a robust, rack-mounted solution designed to pair with single-port network transmitters for long-range, high-speed data over your choice of two-wire, twisted pair, telephone, power, or data cables. This multi-channel receiver excels at reducing cabling requirements and simplifying deployments, making it a top pick for security retrofits, remote networking, and more.
Key Features & Benefits
1. Supports Up to 16 Lines
● Transmit up to 16 separate signals at once, cutting down on clutter and installation time.
● Keeps your infrastructure neat, lowers cable costs, and saves significant labor in complex projects.
2. Extended Range & Stable Speeds
● Each line offers a transmission distance of up to 600 meters.
● Perfect for large-scale facilities or multi-building sites that demand dependable long-range connectivity.
3. Plug-and-Play Simplicity
● Transparent transmission means no extra setup—just power on, connect your transmitters, and go.
● OFDM carrier modulation ensures impressive anti-interference performance and IEEE1901/IEEE802.3 compliance.
4. AC Power Input
● Operates directly on 110–220 VAC, eliminating the need for bulky external power adapters.
● Saves space and eases deployment, especially in large or high-density cabinets.
5. 19-Inch Rack Mount
● Conforms to standard 19-inch rack dimensions for streamlined server room or data center integration.
● Multiple interface options, including 2P/BNC, let you choose the ideal cable type and maintain a tidy setup.
6. Durable & Long-Lasting
● Engineered for a long lifespan of reliable operation—an investment that pays off in consistent uptime.
● Great for video surveillance, remote intercom, branch networking, IP signal transmission, and more.
● Security System Upgrades: Consolidate numerous camera or intercom connections into one cleanly organized chassis.
● Industrial & Commercial Projects: Enable remote monitoring and control across factory floors, campus buildings, or distribution centers.
● Network Expansion & Connectivity: Extend TCP/IP-based services (voice, data, or video) to distant locations without sacrificing stability.
● Smart Building Solutions: Easily integrate additional endpoints for HVAC, lighting controls, or access systems, all housed in a single rack enclosure.
Category | Description | |
Power | Power Input | 100～240VAC |
Ethernet network | Standard Compliance | IEEE 802.3, IEEE 802.3u |
Bandwidth | Full duplex 100Mbps | |

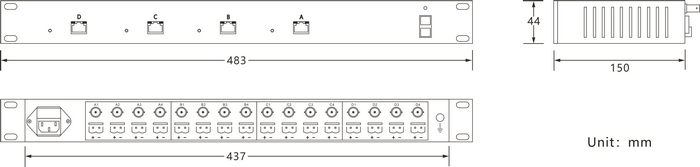

Physical Characteristic | Dimensions (L×W×H) | 483×44×150mm |
Material | Aluminum | |
Net Weight | 1.64KG/PC | |
Operating Environment | Working Temperature | -20℃～60℃ |
Working Humidity | ＜95% (Non-condensation) | |
