Waterproof Gigabit PoE Surge Protector for outdoor

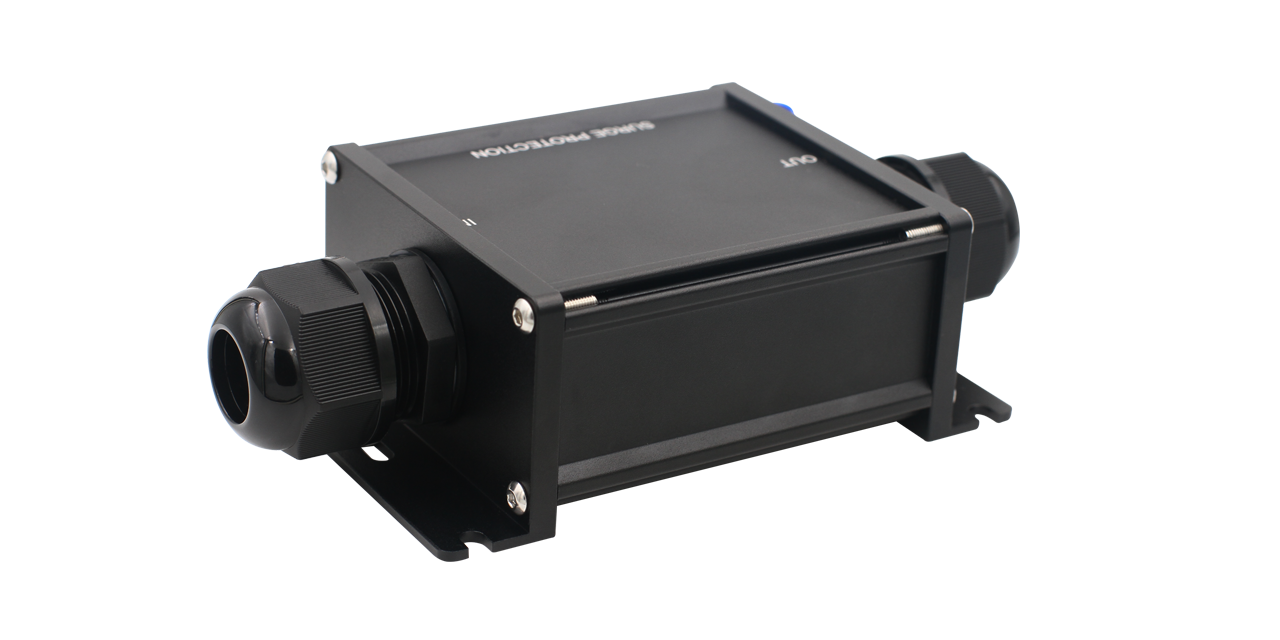

SP-005POEWM1 is a Waterproof Gigabit PoE Surge Protector. It adopts a three-stage protection system to suppress overvoltage and surge currents in network cables. It features an independent grounding terminal to ensure stable communication while handling up to 10kA surge current, effectively protecting network equipment.

Installation

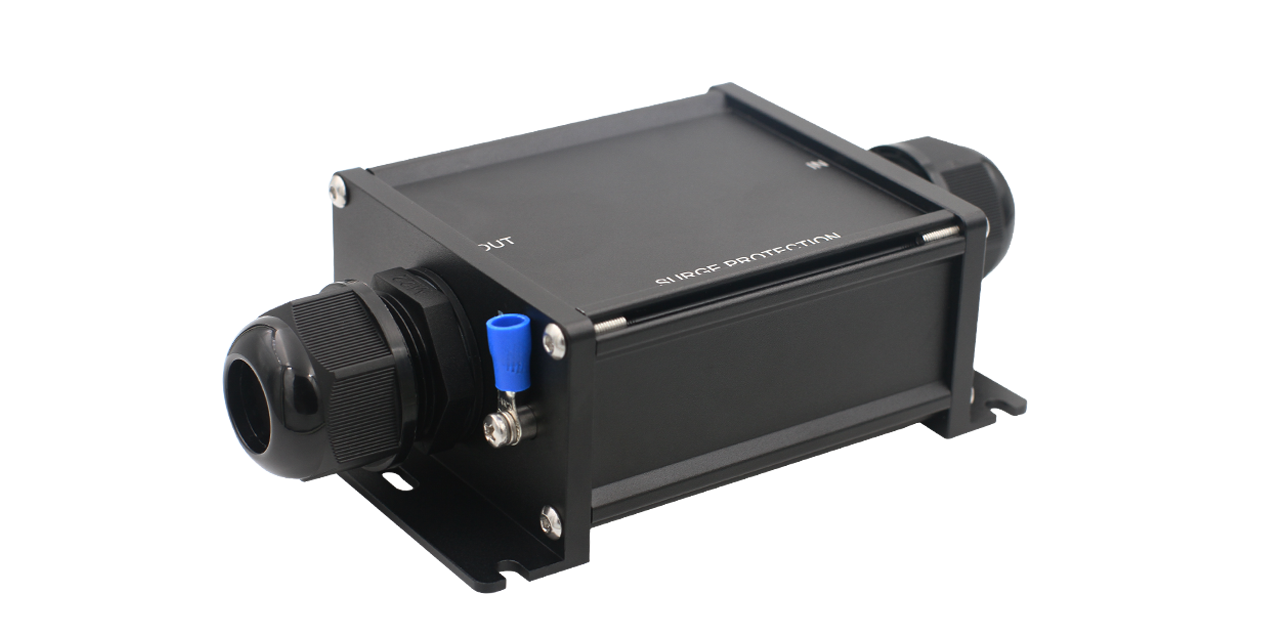

No external power supply is required. Install in series by connecting the protected device to the OUT port, the network line to the IN port, and the ground wire to a grounding busbar or point.

When a surge enters, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage clamping, ensuring only a safe voltage reaches network devices.

Product Features

1. Standard RJ45 Ports – Supports Cat5, Cat5e, Cat6, and Cat7 connectors.

2. Full 8-Pin Protection – Ensures stable power and data transmission for PoE devices.

3. High-Quality Components – Premium surge protection elements extend lifespan to approximately five years.

4. Low Insertion Loss – Less than 0.2dB, maintaining high-quality network signal transmission.

5.Standard Desktop Installation – Designed for easy and stable placement.

6. Durable Aluminum Alloy Housing – Enhances heat dissipation and fire resistance.

7. IP67 Waterproof Rating – Offers excellent protection against dust, water, and harsh environmental conditions.

Applications

Widely used in security surveillance, telecommunications and transportation networks.

Compatible with 100/1000Mbps PoE devices, including PoE cameras, PoE intercom systems, PoE wireless access points, and other PoE-powered equipment.

Provides reliable protection against lightning and power surges, ensuring stable network operation.
