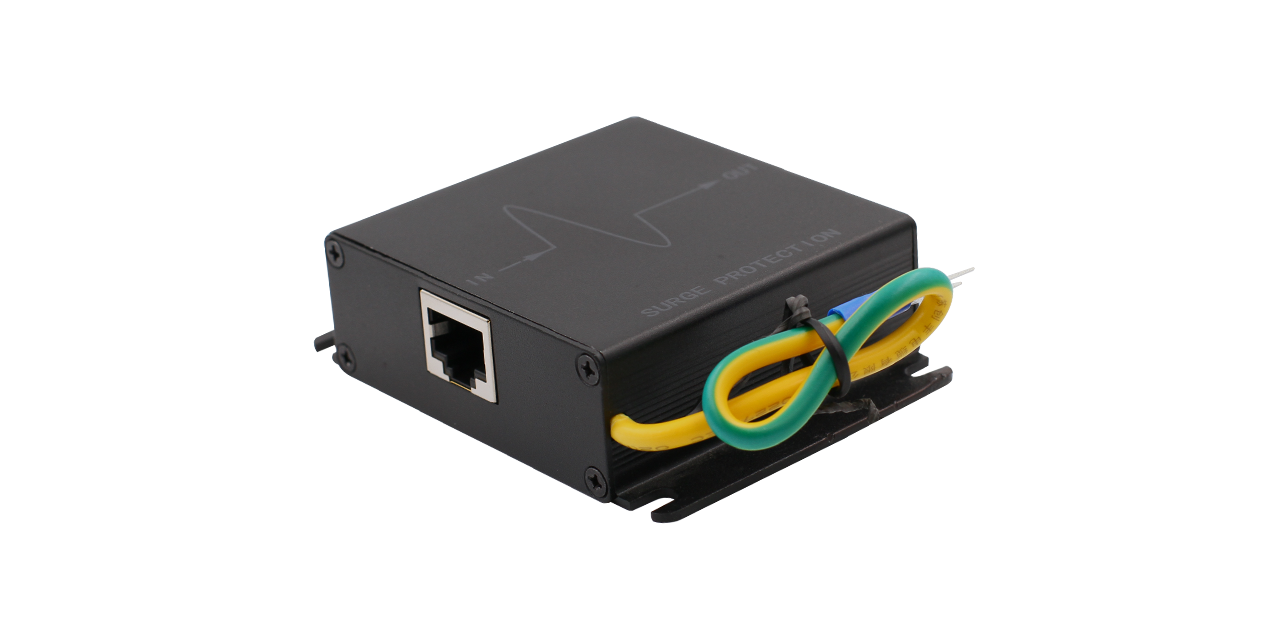

SP-005DC10-RJ45/8 is Gigabit Network Surge Protector. It adopts a three-stage protection system to suppress overvoltage and surge currents in network cables. It features an independent grounding terminal to ensure stable communication while handling up to 10kA surge current, effectively protecting network equipment.
No external power supply is required. Install in series by connecting the protected device to the OUT port, the network line to the IN port, and the ground wire to a grounding busbar or point.
When a surge enters, excess voltage is absorbed and discharged through primary discharge, voltage limiting, and voltage clamping, ensuring only a safe voltage reaches network devices.
1. Standard RJ45 Ports – Supports Cat5, Cat5e, Cat6, and Cat7 connectors.
2. 8-Pin Protection – Supports 1000M communication, ensuring stable data transmission.
3. High-Quality Components – Premium surge protection elements extend lifespan to approximately five years.
4. Low Insertion Loss – Less than 0.2dB, maintaining high-quality network signal transmission.

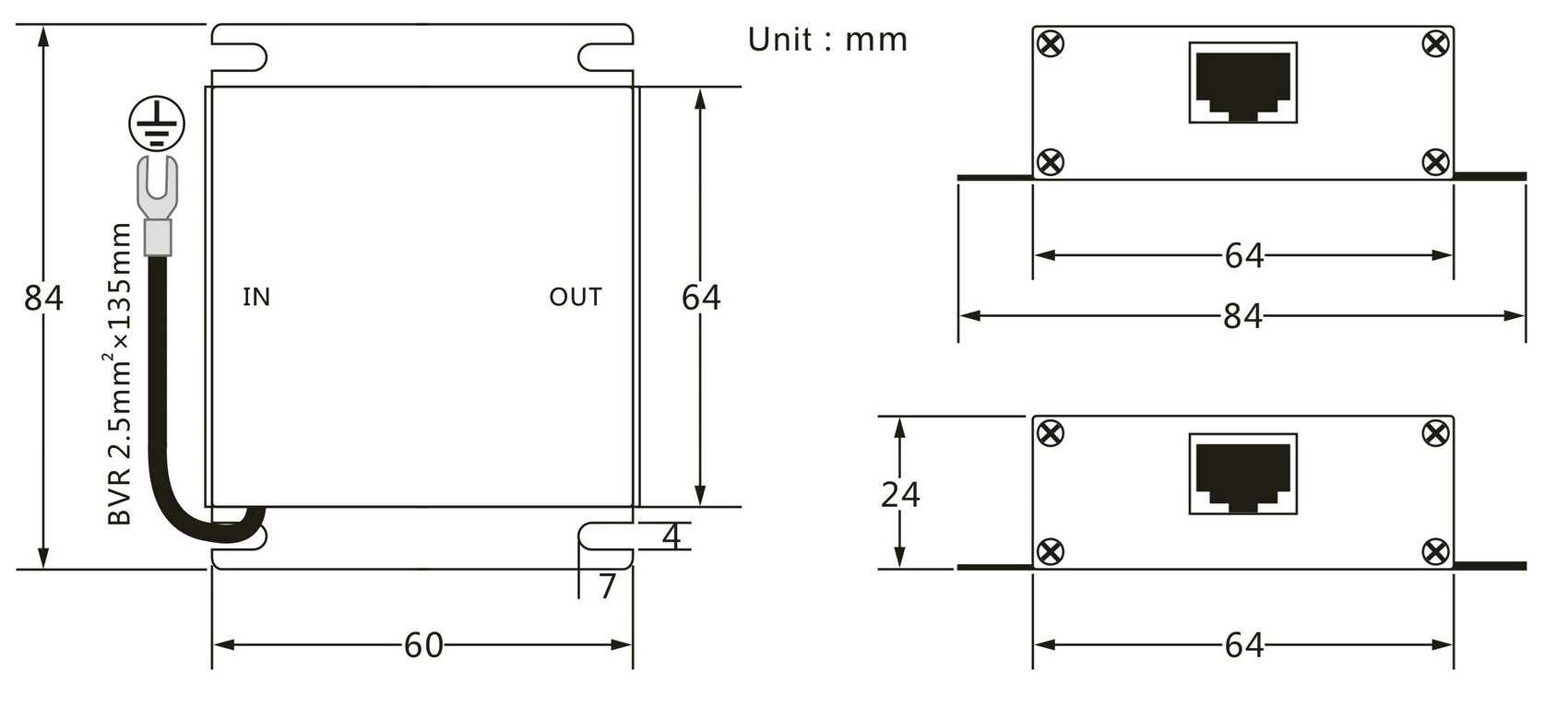

5. Flexible Mounting Options – Supports desktop, wall-mounted, or 35mm DIN rail installation.
6. Durable Aluminum Alloy Housing – Enhances heat dissipation and fire resistance.
7. Compact Design – Ideal for installation in limited spaces.
Widely used in security surveillance, telecommunications, data centers, transportation networks, and industrial automation.
Compatible with 100/1000Mbps network devices, including network switch, IP camera, web server, IP intercom systems, computers.
Provides reliable protection against lightning and power surges, ensuring stable network operation.
Category | Description |
Working Voltage Un (V) | 6/12 |
Limiting Voltage Up (V) | 20 |
Normal Discharge Current In (kA) | 5 |
Maximum Discharge Current Imax (kA) | 10 |
Response Time (ns) | 1 |
Insert Loss (dB) | ≤0.2 |
Transmission Rate (bit/s) | 1000M |
Terminal Type | RJ45 |
Net Weight (g) | 110 |
Working Temperature | -40℃ ～ +80℃ |
Working Humidity | ＜95% Non-condensation |
