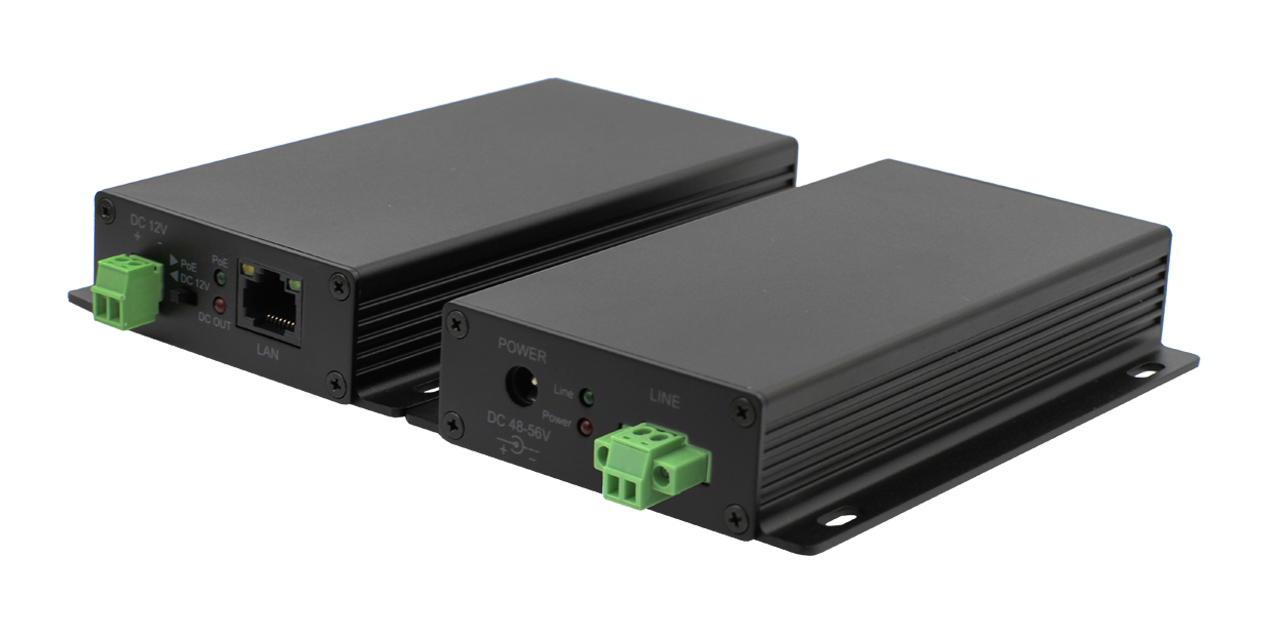

OT-PLC602POE-2P delivers both network connectivity and adaptable power options. Thanks to an easy DIP switch configuration, you can select between standard PoE output or 12VDC. Whether you're powering IP cameras, intercoms, or small sensors, this extender simplifies wiring and reduces project costs by reusing existing cables.
Key Features & Benefits
1. Two Power Modes, One Device
● Use the PoE Output mode for IP cameras or VoIP equipment that requires IEEE802.3af/at-compatible power.
● Switch to 12VDC Output mode for devices needing a traditional 12V power supply—no separate adapter required.

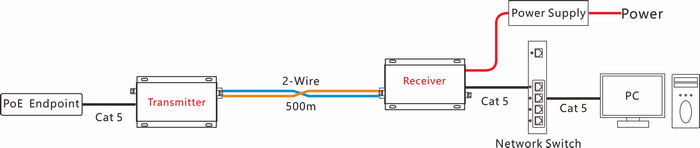

2. Long-Distance Ethernet Over 2 Wires
● Extend your network far beyond standard 100-meter limits using existing two-wire cables.
● Ideal for older buildings, factories, or any scenario where installing new CAT5/CAT6 is expensive or impractical.
3. Simple DIP Switch Configuration
● Easily toggle between PoE or 12VDC output—no software, firmware, or advanced network knowledge needed.
● Plug-and-play transparency ensures seamless integration with other TCP/IP devices.
4. Stable & Interference-Resistant
● Built on robust OFDM or similar modulation technology for reliable, anti-interference data transmission.
● Meets IEEE1901 and IEEE802.3 standards for consistent performance.
5. Space-Saving Design & Flexible Mounting
● Compact form factor with desktop, wall, or optional DIN-rail installation.
● Streamlined enclosure fits neatly into security housings, control cabinets, or discreet locations.
6. Eco-Friendly & Cost-Effective
● Reuse existing two-wire cable runs, minimizing new wiring expenses and reducing waste.
● Consolidated power and data delivery helps meet energy efficiency goals and keeps deployment overhead low.
Ideal Applications
● Upgrading Legacy Cabling: Transform analog lines into digital IP networks, quickly powering endpoints without deploying new cables.
● Multifunction Security Systems: Use PoE mode for IP cameras or access control readers; switch to 12VDC for sensors or small alarm components.
● Remote Intercom & VoIP Solutions: Extend power and data to call boxes or door stations—even in areas lacking standard PoE switches.
● Rural & Industrial Networks: Deploy robust networking gear in remote sheds, warehouses, or plant floors where 12V power might be standard.
Category | Description | ||
Power Input | DC Input | 12VDC, 48～56VDC | |
Power Consumption | ≤3W/PC | ||
Power Output | Dip Switch | RJ45/PoE output | Standard 48VDC; IEEE802.3af/at |
2P DC output | 12VDC 2A (overload protection) | ||
Transmission/Rate | Standard Compliance | IEEE802.3u | |
Up Down Agreement | CSMA/CA | ||
Bandwidth | Full duplex 100Mbps | ||
Encryption Way | 128-bit AES Encryption | ||

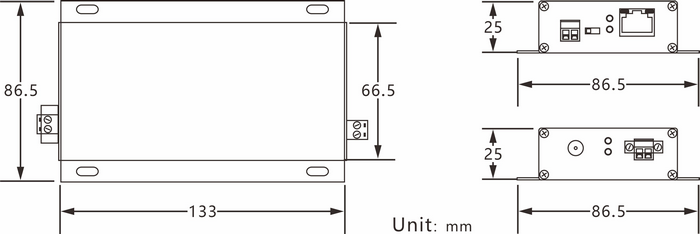

Physical Characteristic | Dimension (L×W×H) | 133×86.5×25mm | |
Material | Aluminum | ||
Net Weight | 220g/PC | ||
Operating Environment | Working Temperature | -20℃～60℃ | |
Working Humidity | ＜95% (Non-condensation) | ||
