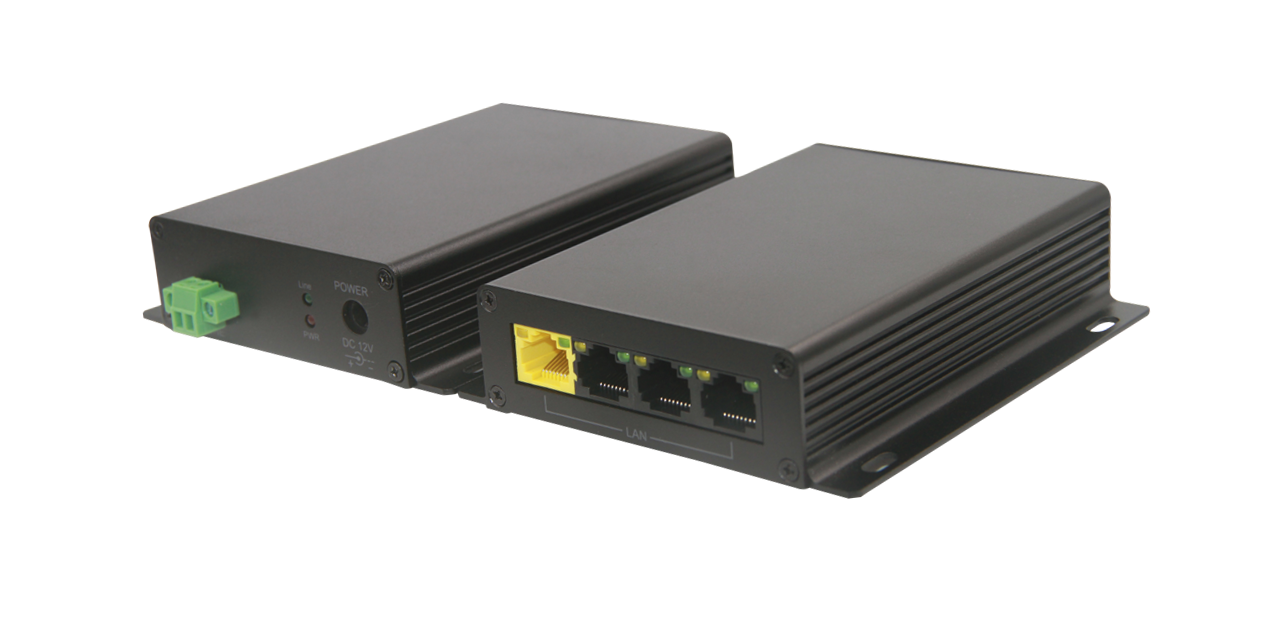

Special 4-ch IP/PoE over 2-wire extender

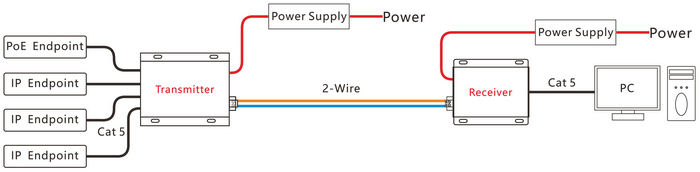

OT-PLC604-2P/POE is a high-speed 4-Ch Ethernet Extender. It can simultaneously transmit 4 channels Ethernet over single pair 2-wire cable for long distance. This device needs to be used with a Receiver. It supports 1 PoE output and 3 non PoE output for different end-points. It can be connected to the existing cabling infrastructure for IoT devices including IP phones, cameras, access control, speakers and etc.

Key Features & Benefits

1. Consolidate Up to 4 Network Devices

● Transmit data for four TCP/IP endpoints (cameras, intercoms, or other network hardware) through a single line.

● Lower your cable usage and cut installation costs—excellent for large properties or resource-conscious deployments.

2. Long-Distance Coverage & Stable Speeds

● Reach up to 600 meters—far beyond typical Ethernet's 100m limit.

● Perfect for remote sites, multi-story buildings, or sprawling campuses.

3. Plug-and-Play Simplicity

● Transparent transmission means zero special setup—just power up, connect your devices, and go.

● Complies with IEEE1901 and IEEE802.3, ensuring reliable data flow across standard network equipment.

4. Flexible Power Options + PoE af Output

● Support for 12VDC/2A power adapters makes local power supply simple and budget-friendly.

● Includes one PoE af output, letting you power a PoE device (e.g., an IP camera or access point) directly from the unit.

5. Compact, Versatile Installation

● Standard desktop installation with optional wall-mount capability, perfect for small enclosures or busy server racks.

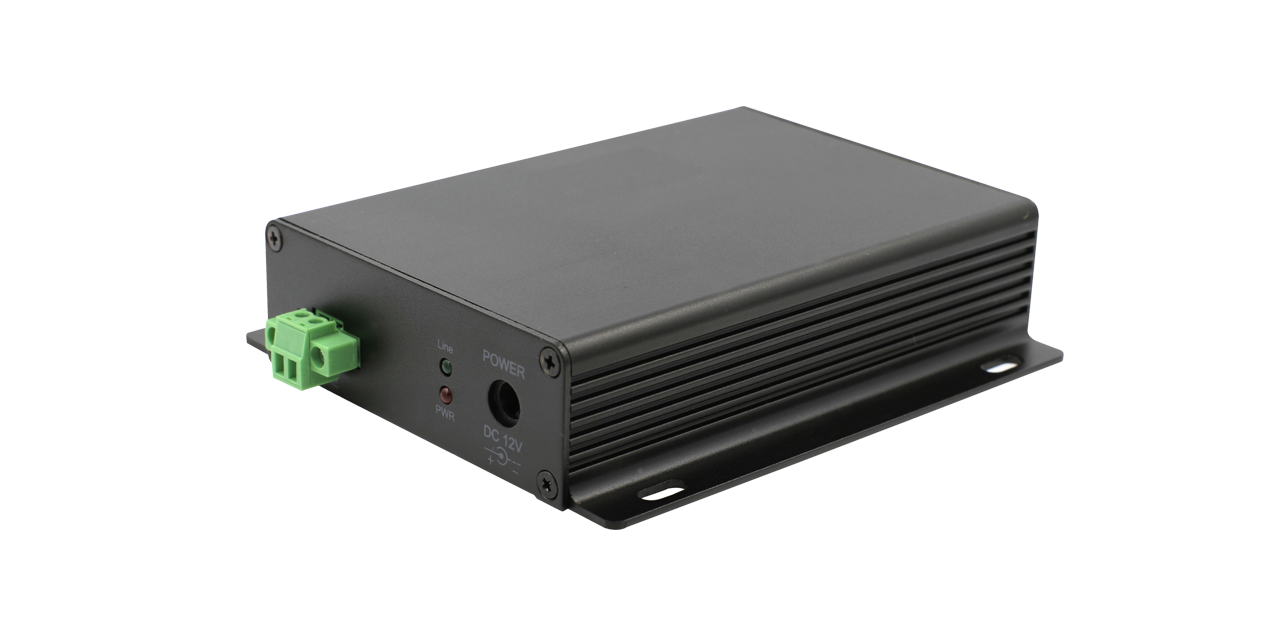

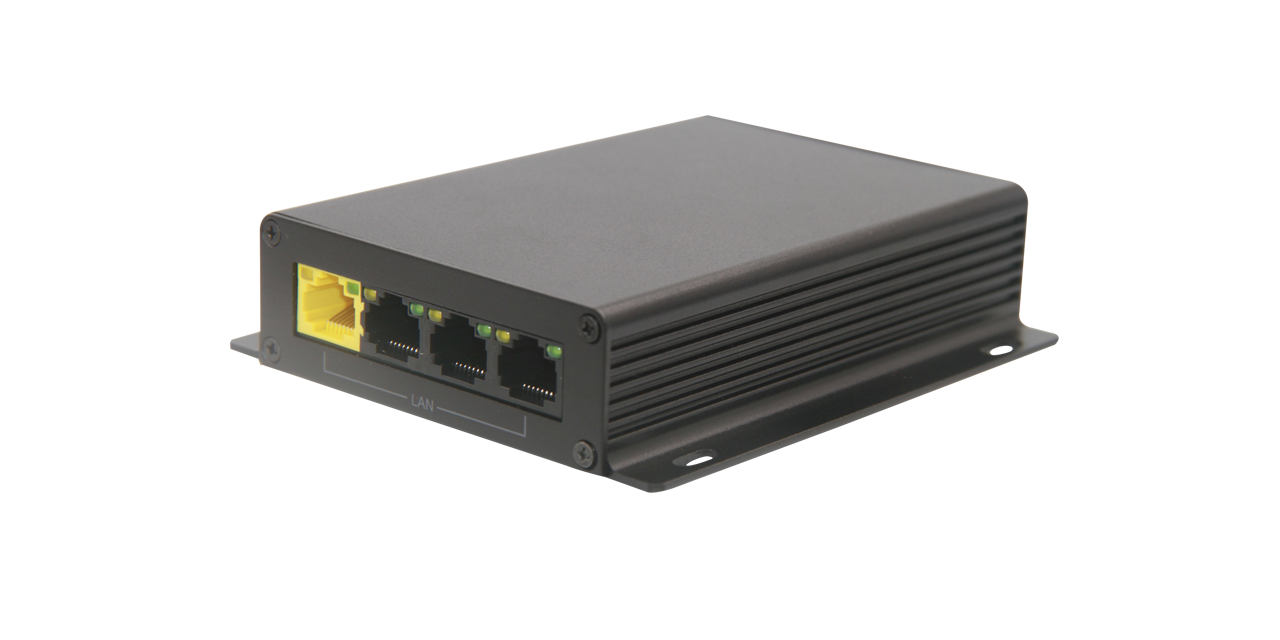

● Features 2P Phoenix terminal and RJ45 ports for data, plus a DC 5mm port for power.

6. Eco-Friendly & Cost-Effective

● Fewer cable runs translate to reduced material waste and less labor time.

● A long service life ensures dependable operation and a strong return on investment.

Ideal Applications

● Security & Surveillance: Combine multiple IP cameras or access control points into a single long-distance cable—cutting clutter and simplifying expansions.

● Video Intercom Solutions: Extend connectivity for intercom panels across large buildings or multi-unit complexes with minimal wiring.

● Branch & Retail Networking: Link multiple devices—POS systems, digital signage, or office terminals—over one cable, even in older facilities.

● Remote Office Extensions: Easily expand network availability in remote parts of a campus or industrial site without additional cable infrastructure.
