首页 Video Balun Active OT-PLC101-N

Video Balun

Passive

OT-PLC101-N

Active

OT-PLC101-N

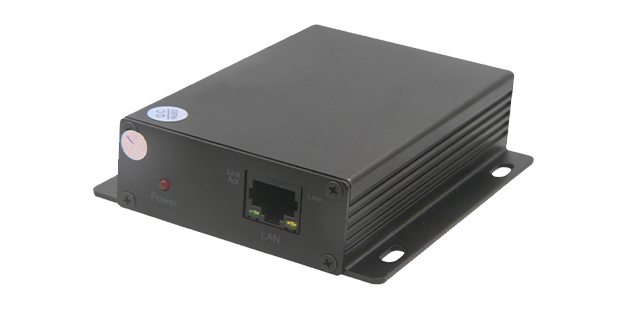

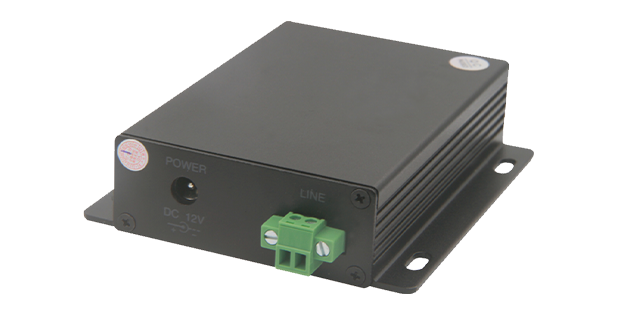

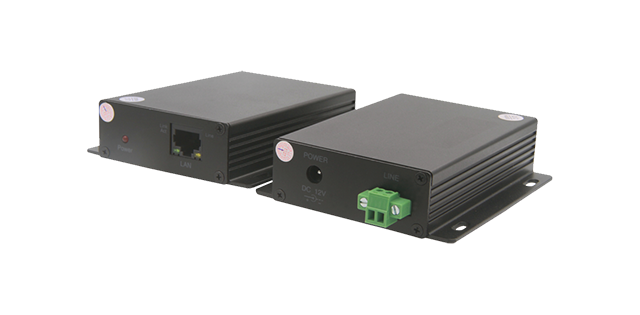

OT-PLC302-N Ethernet Extender allows 10/100 BaseT Ethernet to be transmitted over any 2-wire copper cables. This device is often used in legacy installations where existing wire is re-used as part of an upgrade to IP devices. This device contains one Receiver unit and one Transmitter unit, which supports point-to-point network transmission. Now this device has been widely used for network extension system, network security, network information publishing system, network renovation and expansion systems, etc.

Product Highlights

Transmission distance 600m

Full duplex 10/100Mbps

Metal housing

概览

维度

图表

参数

下载

概览

Max transmission distance can reach 600m

Max physical bandwidth can reach 500Mbps

Plug and play, transparent transmission, no adjustment and no need to change the upper software

Low power consumption, communication channel dynamic adjustment and high performance error correction coding technology

维度

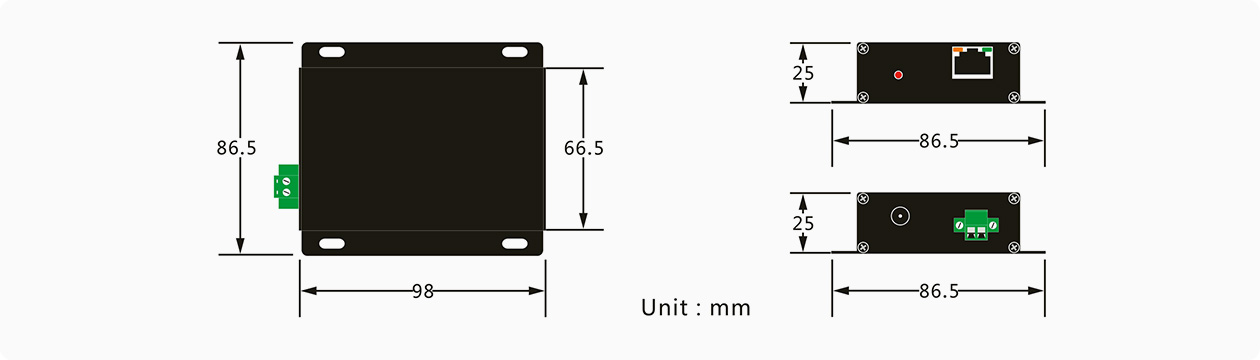

Ethernet Extender(图1) Note: Dimension error value ±1 mm

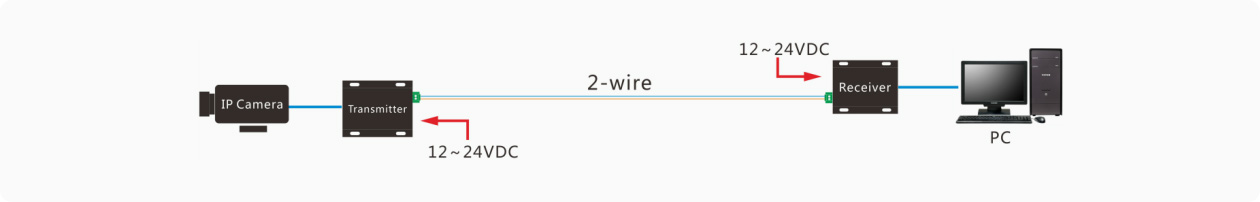

图表

Ethernet Extender(图1)

参数

Category		Description
Power	Available Voltage Range	12～24VDC
Power	Power Consumption	≤2W / PC
Transmission / Rate	Standard Compliance	IEEE1901, IEEE802.3
	Up Down Agreement	CSMA/CA
	Physical Speed	Full duplex 10/100Mbps
Physical Characteristic	Dimensions (L × W × H)	Dimensions (L × W × H)
	Material	98mm×86.5mm×25mm
	Net Weight	150g / PC
Operating Environment	Working Temperature	150g / PC
Operating Environment	Working Humidity	＜95% (Non-condensation)

下载

OT-PLC302-N Ethernet Extender Product User Manual
